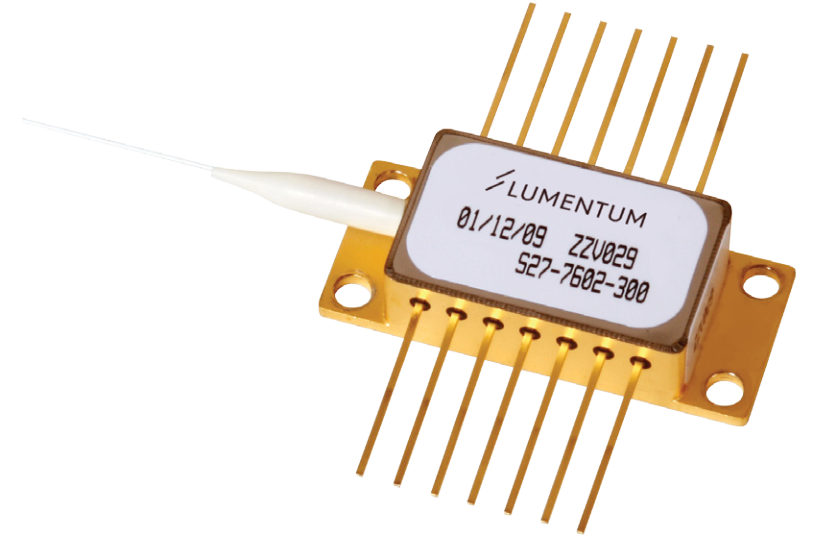

The Lumentum S27 Series of 980 nm pump laser modules uses a number of revolutionary
design steps and the very latest material technologies to signifcantly improve scalability of
the production process. The semicooled 45°C laser diode operation provides for a signifcant
reduction in TEC and overall power consumption. The module meets the stringent
requirements of the telecommunications industry including Telcordia GR-468-CORE for
hermetic 980 nm pump modules.
The S27 Series pump module, which uses fber Bragg grating
stabilization to lock the emission wavelength, provides a noisefree, narrowband spectrum even under changes in temperature,
drive current, and optical feedback. Wavelength selection is
available for applications requiring the highest performance in
spectrum control with the highest power available.

Key Features

• Operating power range from 100 – 460 mW

• Reduced TEC power consumption compatible with legacy temperature control

• Low-profile, 14-PIN butterfly package • Fiber Bragg grating stabilization

• Wavelength selection available

• Integrated thermoelectric cooler, thermistor, and monitor diode

• High dynamic range

• Excellent low-power stability
